Fanless Touch Panel PC

IPC215

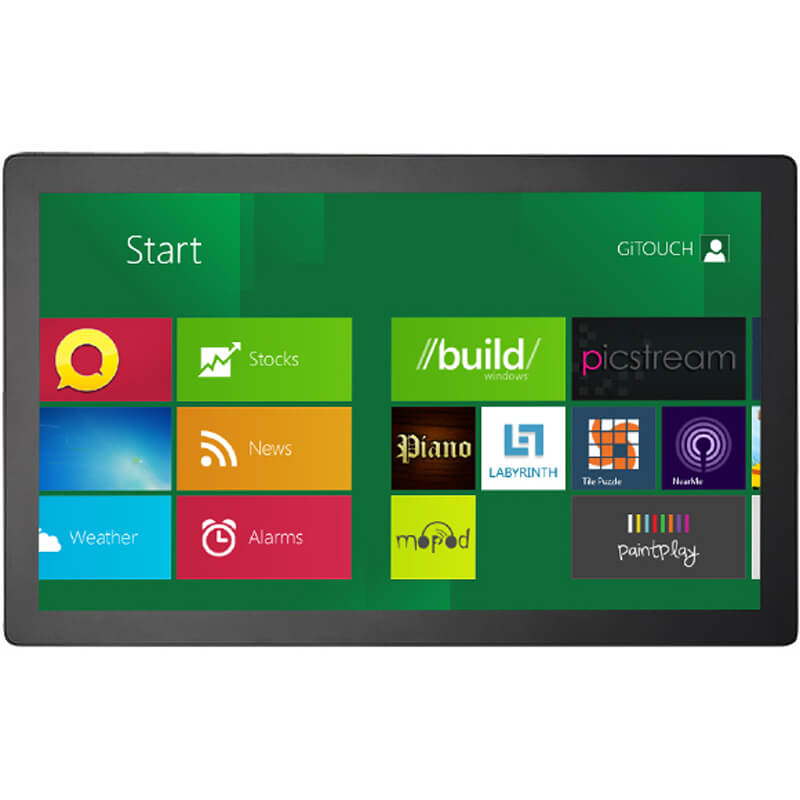

21.5" inch PCA-P Fanless Touch Panel Computer

Datasheet (PDF)

21.5" TFT LCD display with LED backlight

Fanless design with Intel® Processor

10 Points Capacitive Touch

Default IP66 Front Waterproof

300nits Brightness，Upgradable to1200nits

Rich Expansion：3G/4G, WIFI, Blooth， RS232/RS422/RS485, GPIO Options

Embedded, Wall Mounted, Vesa

System Parameters
Processor&Chipset	•Onboard Intel® J1900 Four Cores, 2.0GHz, 2M Cache ,NM70 Chipset •Onboard Intel® N100 Four Cores, 3.4GHz, 6M Cache ,Intel® UHD Graphics •Onboard Intel® i3,i5,i7, 4th~14th Generation
Memory	1 x DDR3/DDR4 SO-DIMM socket, 2GB/4GB/8GB/16GB/32GB
Storage	1 x 2.5" SATA 500GB/1TB/2TB 1 x Msata 16GB/32GB/64GB/128GB/256GB
Cooling System	Fanless design
BIOS	AMI 16MB DPI Flash
Watchdog Timer	255 level, 0~255 sec
LAN	1 x Realtek RT8111E, 10/100/1000M, Support PXE, Wake on Lan
Audio	Realtek ACL662 Audio controller, Line-out, Mic-in.
Expansion Port	2 x MINI PCI-E full slot, 1 x SIM
OS	Linux/ Win dows XP/7/8/10
Expansion Function
GPIO	Optional
3G/4G	Optional
WIFI/BT	Optional(802.11 a/b/g/n, Bluetooth 4.0)
RS422/485	Optional
Speaker	Optional
Degree of protection
Front Panel IP65	Default
Whole IP65	Optional
Display Parameters
LCD Size	21.5" TFT (LED Backlight)
Resolution	1920*1080
Brightness	350cd/m² (1000cd/m² optional)
Aspect ratio	16:9
Life Time	50,000hrs
Contrast Radio	(1000:1)
Response Time	2.5ms
Viewing Angle	Whole View Angle 85/85(U/D), 80/80(L/R)
Color Resolution	16.7M
Touch Screen Parameters
Touch Type	Capacitive Touch
Surface Hardness	6H>(Capacitive Touch)
Resolution	4096*4096
Life Time	50,000hrs
Transparent Rate	>85%

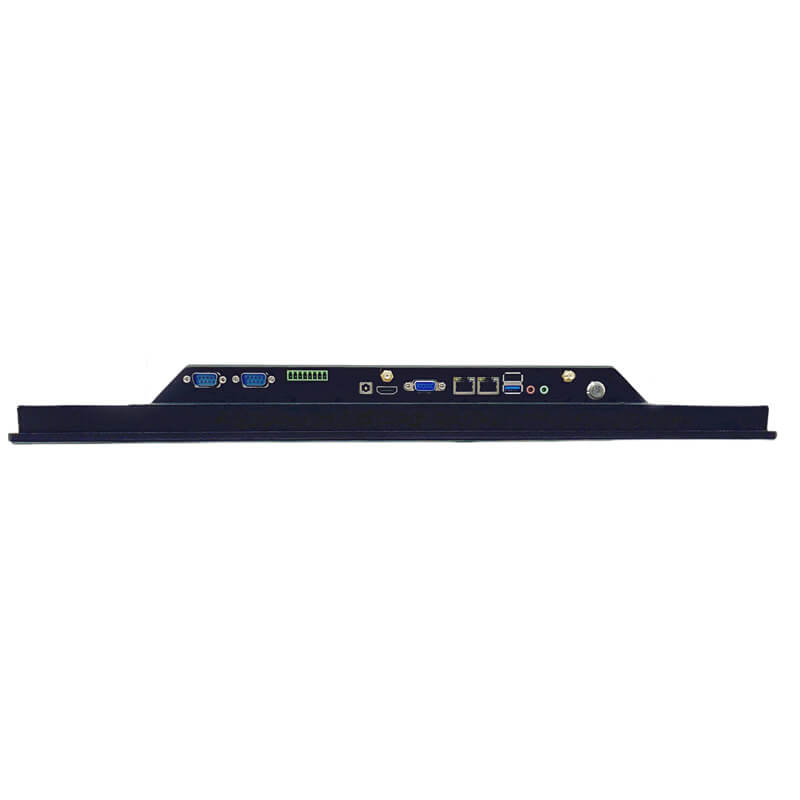

IO Interface
COM	2 x COM(Default RS232, 6 maximum)
RS422/485	Optional (1x RS485/422)
USB	3 x USB2.0+1 x USB2.0
LAN	1 x RJ45, 10/100/1000M(2RJ45 Optional)
Audio	Line-out, Mic-in
VGA	1x
HD MI	1x
Power Supply
Power Supply	12V DC Power Input
Power Comsuption	<45W
Wide Voltage	Optional (DC 6~36V Wide Voltage, IPTS )
Installation
VESA	100mm*100mm
Embedded	Cabinet Hole Size: 533mm*325mm
Environments
Operating Temp	-10℃~50℃
Storage Temp	-30℃~70℃
Relative Humidity	5~95%@10℃ (Non-condensing)
Vibration	5~500Hz,1.5G,0.15mm peak value
Shake	1.5 Grms, IEC 60068-2-64, 5 ~ 500 Hz, 1 hr/axis
Shock	10 Grems, IEC 60068-2-64, Half sine wave,for 11 ms
EMC	CE/FCC Class A
Enclosure
Housing Material	Aluminum Chassis with fanless design
Dimensions	533 mm (W) x 325 mm (D) x 73mm (H)
Net Weight	6KG

Date	Description	Download File

IPC800

8.4" inch 4:3 Ratio Fanless Touch Panel Computer with Intel® Processor N-series...

Datasheet (PDF)

IPC104

10.4" inch 4:3 Ratio Fanless Touch Panel Computer with Intel® Processor ...

Datasheet (PDF)

IPC170

17" inch 1280*1024 Fanless Touch Panel Computer with Intel® Processor ...

Datasheet (PDF)

Features

21.5" TFT LCD display with LED backlight

Fanless design with Intel® Processor

10 Points Capacitive Touch

Default IP66 Front Waterproof

300nits Brightness，Upgradable to1200nits

Rich Expansion：3G/4G, WIFI, Blooth， RS232/RS422/RS485, GPIO Options

Embedded, Wall Mounted, Vesa

Specifications

System Parameters
Processor&Chipset	•Onboard Intel® J1900 Four Cores, 2.0GHz, 2M Cache ,NM70 Chipset •Onboard Intel® N100 Four Cores, 3.4GHz, 6M Cache ,Intel® UHD Graphics •Onboard Intel® i3,i5,i7, 4th~14th Generation
Memory	1 x DDR3/DDR4 SO-DIMM socket, 2GB/4GB/8GB/16GB/32GB
Storage	1 x 2.5" SATA 500GB/1TB/2TB 1 x Msata 16GB/32GB/64GB/128GB/256GB
Cooling System	Fanless design
BIOS	AMI 16MB DPI Flash
Watchdog Timer	255 level, 0~255 sec
LAN	1 x Realtek RT8111E, 10/100/1000M, Support PXE, Wake on Lan
Audio	Realtek ACL662 Audio controller, Line-out, Mic-in.
Expansion Port	2 x MINI PCI-E full slot, 1 x SIM
OS	Linux/ Win dows XP/7/8/10
Expansion Function
GPIO	Optional
3G/4G	Optional
WIFI/BT	Optional(802.11 a/b/g/n, Bluetooth 4.0)
RS422/485	Optional
Speaker	Optional
Degree of protection
Front Panel IP65	Default
Whole IP65	Optional
Display Parameters
LCD Size	21.5" TFT (LED Backlight)
Resolution	1920*1080
Brightness	350cd/m² (1000cd/m² optional)
Aspect ratio	16:9
Life Time	50,000hrs
Contrast Radio	(1000:1)
Response Time	2.5ms
Viewing Angle	Whole View Angle 85/85(U/D), 80/80(L/R)
Color Resolution	16.7M
Touch Screen Parameters
Touch Type	Capacitive Touch
Surface Hardness	6H>(Capacitive Touch)
Resolution	4096*4096
Life Time	50,000hrs
Transparent Rate	>85%
IO Interface
COM	2 x COM(Default RS232, 6 maximum)
RS422/485	Optional (1x RS485/422)
USB	3 x USB2.0+1 x USB2.0
LAN	1 x RJ45, 10/100/1000M(2RJ45 Optional)
Audio	Line-out, Mic-in
VGA	1x
HD MI	1x
Power Supply
Power Supply	12V DC Power Input
Power Comsuption	<45W
Wide Voltage	Optional (DC 6~36V Wide Voltage, IPTS )
Installation
VESA	100mm*100mm
Embedded	Cabinet Hole Size: 533mm*325mm
Environments
Operating Temp	-10℃~50℃
Storage Temp	-30℃~70℃
Relative Humidity	5~95%@10℃ (Non-condensing)
Vibration	5~500Hz,1.5G,0.15mm peak value
Shake	1.5 Grms, IEC 60068-2-64, 5 ~ 500 Hz, 1 hr/axis
Shock	10 Grems, IEC 60068-2-64, Half sine wave,for 11 ms
EMC	CE/FCC Class A
Enclosure
Housing Material	Aluminum Chassis with fanless design
Dimensions	533 mm (W) x 325 mm (D) x 73mm (H)
Net Weight	6KG

Download

Related Products

Software

Design Guide

Technical Announcement

IPC800

IPC104

IPC170

Software

Design Guide

Technical Announcement

IPC800

IPC104

IPC170
